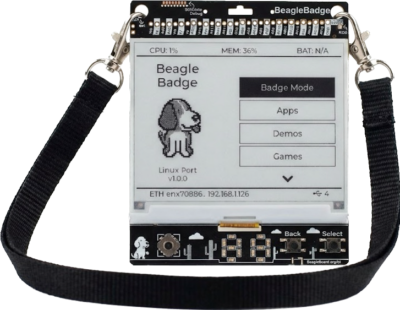

BeagleBadge

BeagleBadge brings a new vision to wearables by combining powerful built-in sensing with unmatched expansion flexibility. With an onboard light sensor, accelerometer/gyroscope for precise position and orientation feedback, and integrated temperature and humidity monitoring, it empowers users to design intuitive, context-aware interactions. Beyond its core features, dual QWIIC, Grove, and mikroBUS headers unlock thousands of additional sensors and actuators— from pulse oximeters and UV spectroscopy to fingerprint readers, GPS, haptics, and audio. This extraordinary modularity transforms BeagleBadge into a limitless innovation platform, enabling rapid prototyping, research, and real-world solutions in health, environment, and human-machine interfaces. It inspires creativity while remaining practical, scalable, and accessible to all.

Chipset Features

AM62L info here

Board Features

Hardware Features

  • Processor and memory
    • **NEW** TI AM62L32
      • Low-power SoC with display for IOT, HMI and general purpose applications
      • Dual-core Arm® Cortex®-A53 processor @ 1.25GHz
    • RAM: 2Gb (128M x 16bit)-1600MHz 3200Mbps LPDDR4
    • Flash/non-volatile:
      • 4GB eMMC storage
      • 256Mb OSPI flash
      • 32Kb EEPROM
  • Netowrking
    • BeagleMod CC3301-1216 Module, WiFi6 (2.4GHz) + Bluetooth 5.2 with MHF4 Connector
    • LoRaWAN (Wio SX1262 module) with u.FL Connector
  • Built-in Sensors
    • 1x IMU Sensor
    • 1x Ambient light sensor
    • 1x Temperature & humidity sensor
  • User interface
    • 1x Reset button
    • 1x 4-way Joystick button with press
    • 2x Tactile buttons (Back and Select)
    • 1x Passive Buzzer
    • 1x RGB status LED
    • 2x 7-segment LED displays
  • Battery interface
    • Battery management with fuel gauge monitoring
    • 1x BAT Connector for BL-5C
  • Expansion/connectors
    • Support 4.2″ ePaper via 24-pin FPC Connector
    • MIPI DSI connector for LCD displays
    • USB Type-C for Power input and debug
    • 1x mikroBus Connector
    • 1x USB2.0 Type-A host
    • 1x Micro-SD socket
    • 2x QWIIC Connector
    • 1x Grove Connector

Software Features

  • Linux and Zephyr base ports with mainline roadmap
  • LVGL and MicroPython libraries for interactive ePaper display
  • App store for programming examples
  • Meshtastic and ActivityPub integration for seamless off-grid messaging
